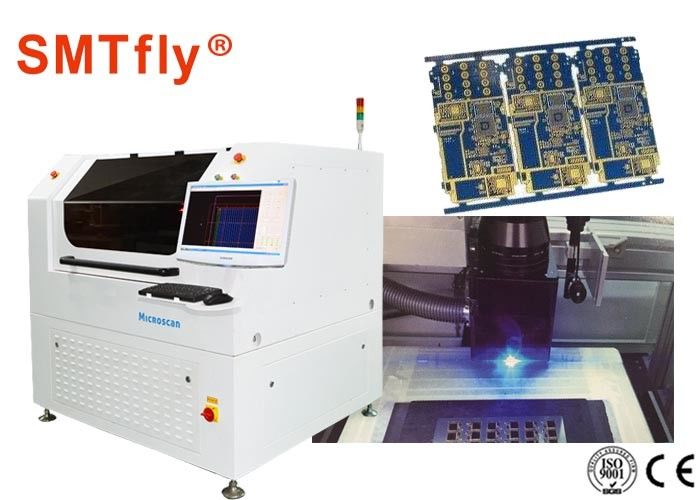

Simi Automatic UV Laser Cutting Machine For PCB Depaneling Machine SMTfly-5S

China Simi Automatic UV Laser Cutting Machine For PCB Depaneling Machine SMTfly-5S supplier
Simi Automatic UV Laser Cutting Machine For PCB Depaneling Machine SMTfly-5S supplier Simi Automatic UV Laser Cutting Machine For PCB Depaneling Machine SMTfly-5S supplier

Large Image :  Simi Automatic UV Laser Cutting Machine For PCB Depaneling Machine SMTfly-5S

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO
Model Number: SMTfly-5S

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD/1Set
Packaging Details: Wooden Box
Delivery Time: After payment 15-30 working days
Contact Now
Detailed Product Description
Repetition Precision: ±1μm Laser: Optowave UV
Laser Wavelength: 355nm Platform: Marble
Rated Power: 10W/12W/15W/17W Color: White
High Light:

uv laser cutting machine

,

pcb laser cutting machine

Simi Automatic UV Laser Cutting Machine for Pcb Depaneling Machine,SMTfly-5S:



PCB depaneling (singulation) laser machines and systems have been gaining popularity over recent years. Mechanical depanaling/singulation is done with routing, die cutting, and dicing saw methods. However, as the boards get smaller, thinner, flexible, and more sophisticated, those methods produce even more exaggerated mechanical stress to the parts. Large boards with heavy substrates absorb these stresses better, while these methods used on ever-shrinking and complex boards can result in breakage. This brings lower throughput, along with the added costs of tooling and waste removal associated with mechanical methods.

Increasingly, flexible circuits are found in the PCB industry, and they also present challenges to the old methods. Delicate systems reside on these boards and non-laser methods struggle to cut them without damaging the sensitive circuitry. A non-contact depaneling method is required and lasers provide a highly precise way of singulation without any risk of harming them, regardless of substrate.



Simi Automatic UV Laser Cutting Machine for Pcb Depaneling Machine,SMTfly-5S​ Features:

  • High precision CCD automatic positioning, automatic focusing;

  • Fast and accurate positioning, save time and no worries;

  • Friendly interface,Simple operation, easy to use, free application;

  • Small size, Save more space;

  • rigorous security design;

  • Reduce energy consumption;

  • Cost savings;

  • Cost-effective, fast cutting speed,stable performance.



Advantages of Laser PCB Depaneling/Singulation Machine:



  • No mechanical stress on substrates or circuits
  • No tooling cost or consumables.
  • Versatility – ability to change applications by simply changing settings
  • Fiducial Recognition – more precise and clean cut
  • Optical Recognition before PCB depaneling/singulation process begins.
  • Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
  • Extraordinary cut quality holding tolerances as small as < 50 microns.
  • No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards



UV Laser PCB Depaneling System​-Laser Cutting MachineSpecification:



Technical Parameter Main body of laser 1480*1360*1412
Weight 1500KG
Laser 355nm
Laser Optoware 10W (US)
Material ≤1.2mm
Precision ±20μm
Platform ±2μm
Working Area 600*450mm
Maximum 3KW
Vibrating CTI(US)
Power AC220V
Diameter 20±5μm
Ambient 20±2℃
Ambient < 60%
The Machine

Marble





Application for Laser PCB Depaneling Machine:



  1.   FPC and some relative materials;
  2.   FPC/PCB/ Rigid‐Flex PCB cutting,
  3.   Camera module cutting.

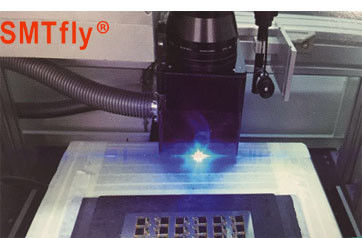

FPC Laser Cutting/ Depaneling-Laser PCB Depaneling Machine with CE:



   Simi Automatic UV Laser Cutting Machine For PCB Depaneling Machine SMTfly-5S
